300W 12V Monocrystalline Solar Panel Kit

Price
¥55,100
Taxes and shipping calculated at checkout
In stock and ready for shipping

Frequently Bought Together

We Accept

American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa
Description

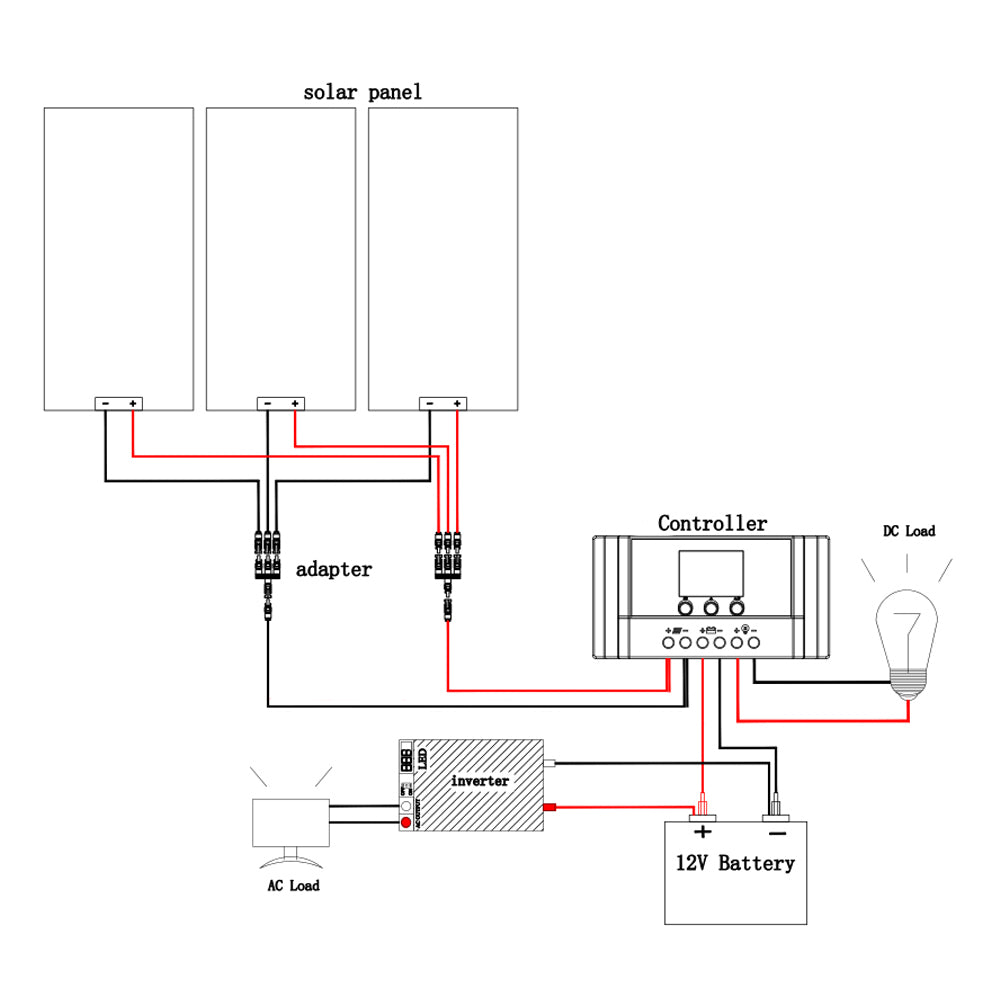

WUZECK offers the most economical and practical installation kit for beginners who are just getting started with solar systems. The kit includes solar panel, controller, extension cable, battery connection cable, mounting bracket, and adapter. In addition, please purchase an inverter and batteries depending on the power of the load. This is a complete starter off-grid system.
Solar panel kit is a system for converting light energy into electrical energy. It is a clean, environmentally friendly and practical energy source. It is suitable for RV, boat, home power, ranch, cabin, truck, solar lights, etc. It can provide good power supplement for your travel, home, outdoor work, etc.

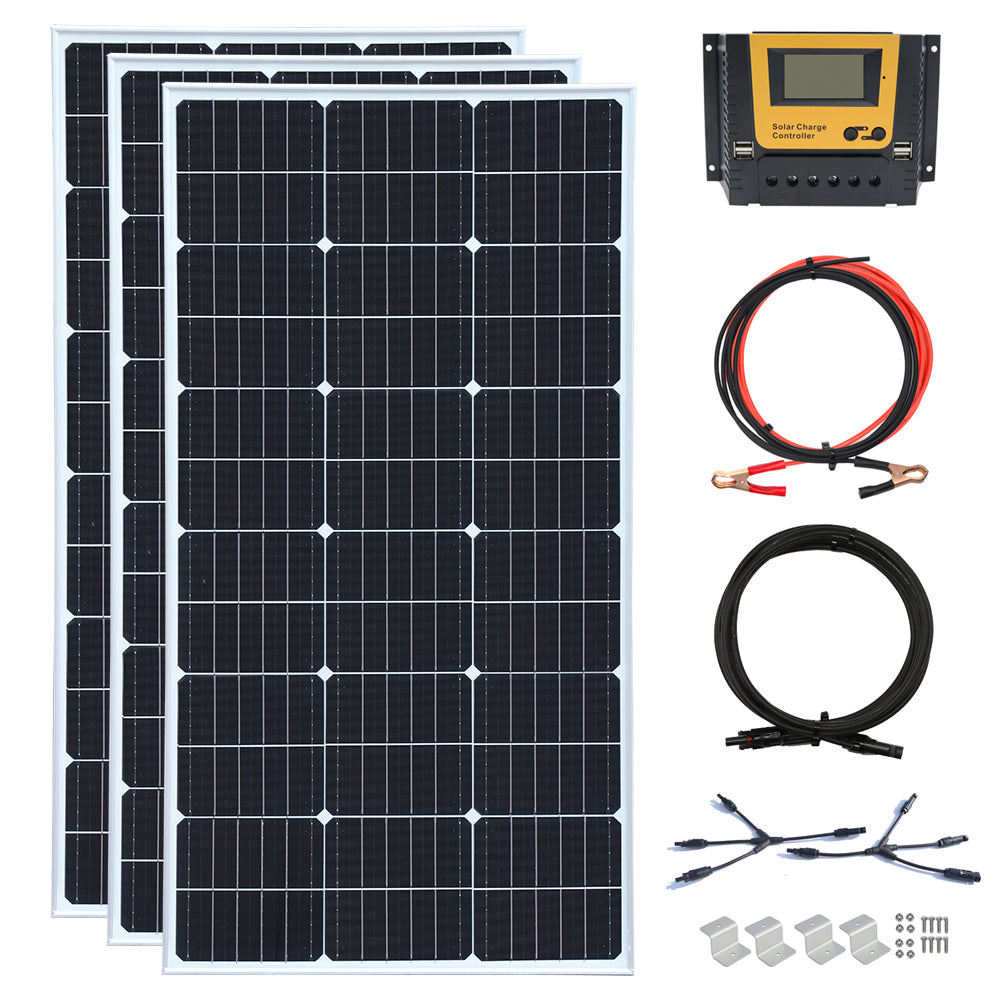

Solar panel kit including:
3pcs 100w solar panel
1pcs 30A charge controller
1set Extension cable
1 set Battery connection cable
1 set Parallel connectors
12pcs Mounting brackets.

The 30A charge controller can accommodate kits that extend up to 400W. Connect in parallel to meet larger power demands.

Specification

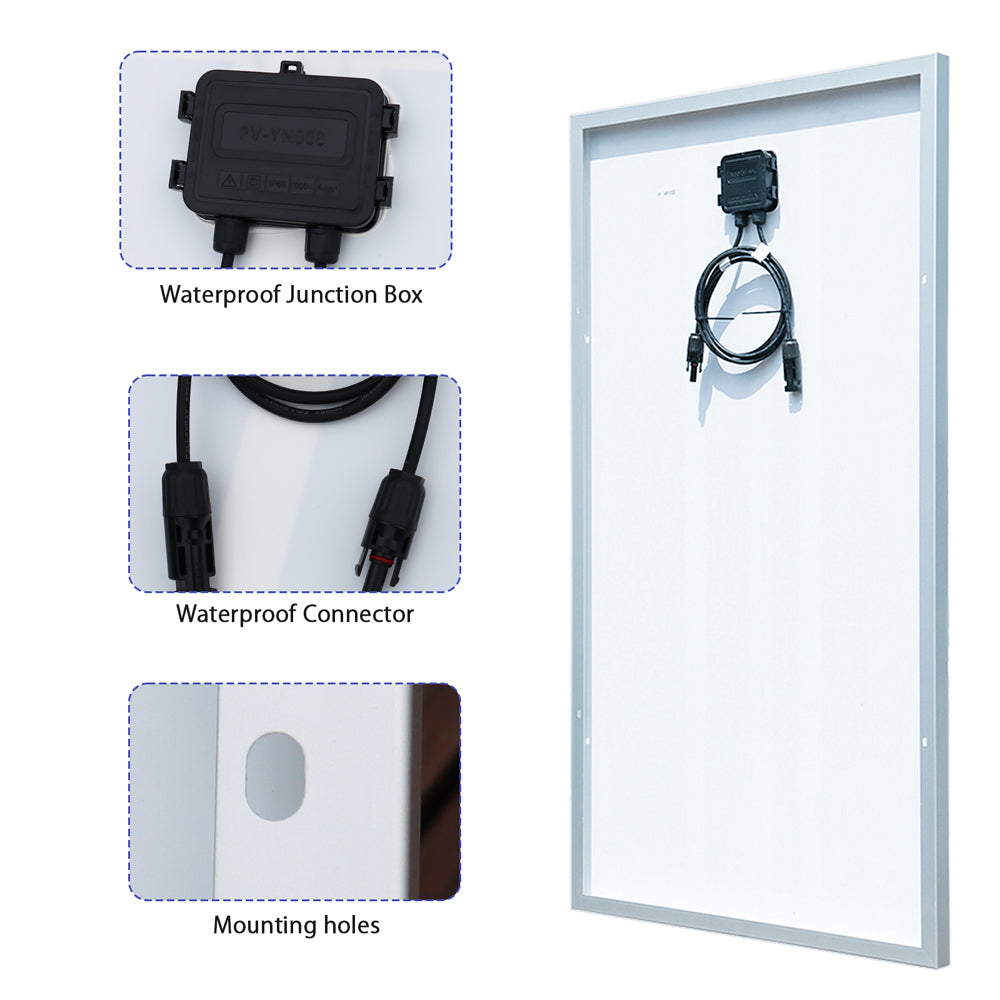

Solar Panel
Maximum power:100W
Maximum power voltage:18V
Maximum power current:5.55A
Open circuit voltage:21.6V
Short circuit current:6.10A

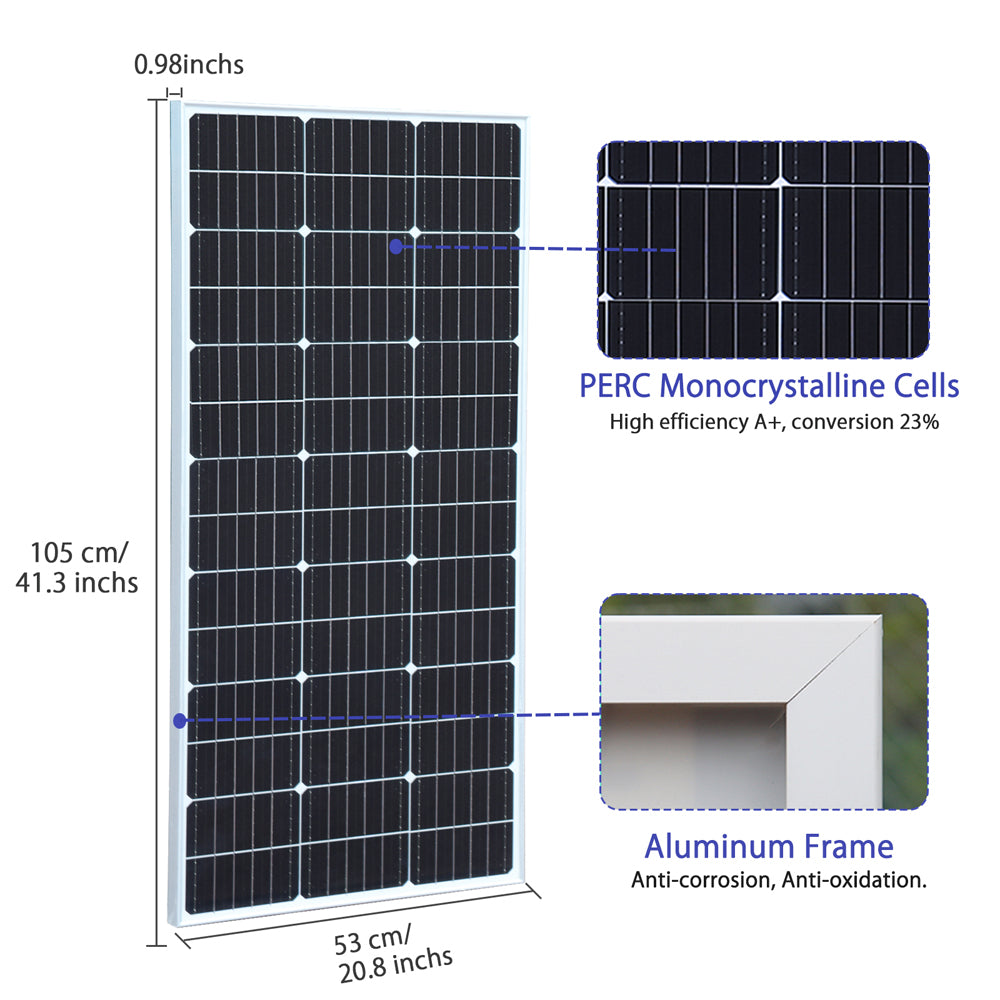

Size of module:41.3x20.86x0.98 in (1050X530X250mm)
Temperature Range:-20- +80 ℃
Weight per piece:11lb(5kg)
Length of Cables: 2.95FT(90cm)
Standard Test Conditions:AM1.5 100mw/cm2 25 ℃

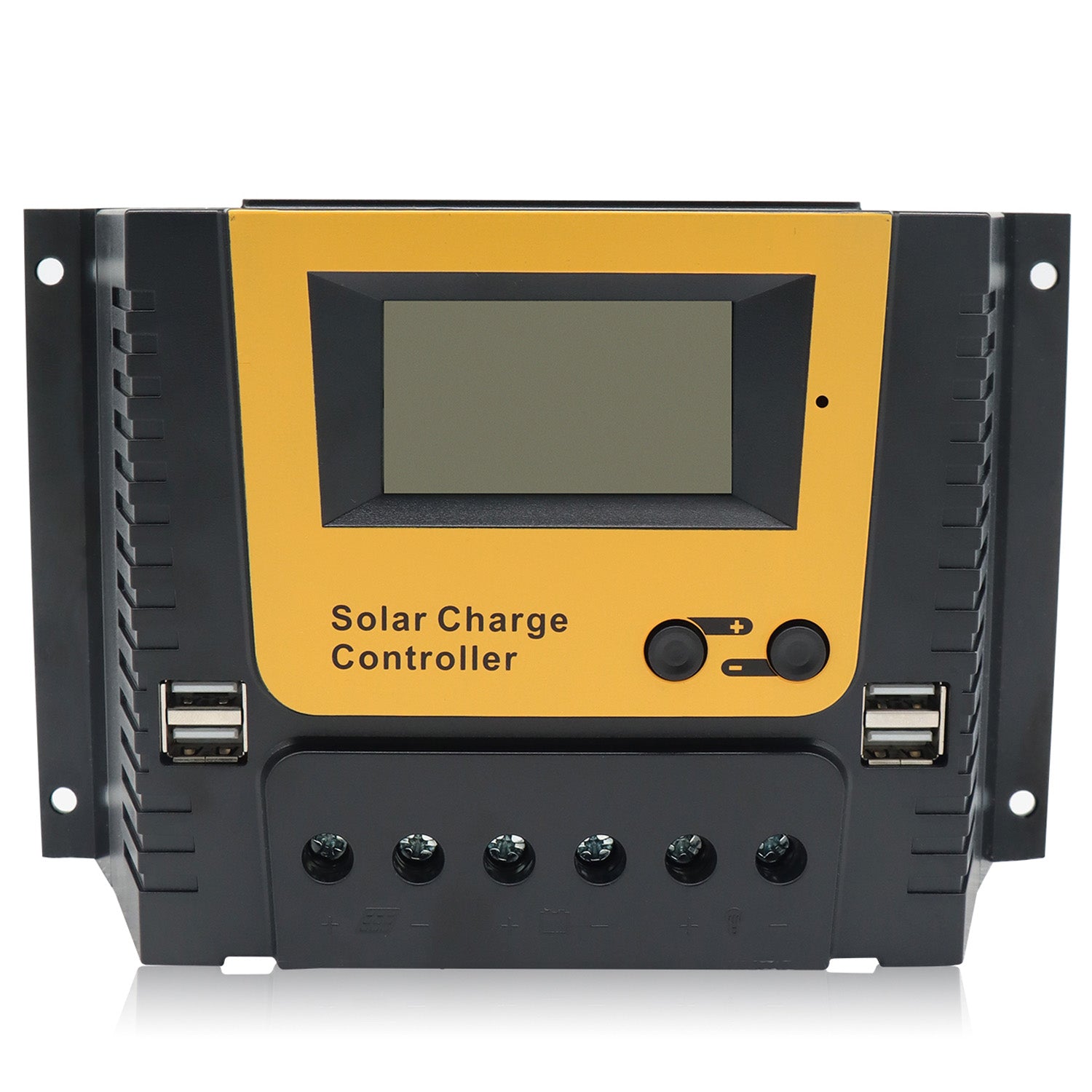

Charge Controller
Max Current:30A
Battery Voltage:12V/24V Auto
Max PV Open Circuit Voltage:100V
Self-consumption:≤30mA
Loop Voltage Drop:≤0.3V
USB Output:5V/2A *2
Temperature Compensation:-4mV/℃/2V (25℃)
Operating Temperature:-20℃~+50℃
Protection Category:IP32
Support more kinds of battery: Lead-acid battery (Sealed, Gel, Flooded) and Lithium battery (LiCoMnNiO2, LiFePO4);
Humidity:95%, no-condensing
Mounting Hole Size:190*69mm-Φ5mm
Dimension:200*106*47mm
Weight:0.4KG
