600W On-grid Solar Panel Kit for Balcony power plant

Balcony power stations make full use of the space on balconies, roofs, gardens, etc. to set up solar power panels, connect AC/DC converters, and then transmit the electricity directly to the home grid.

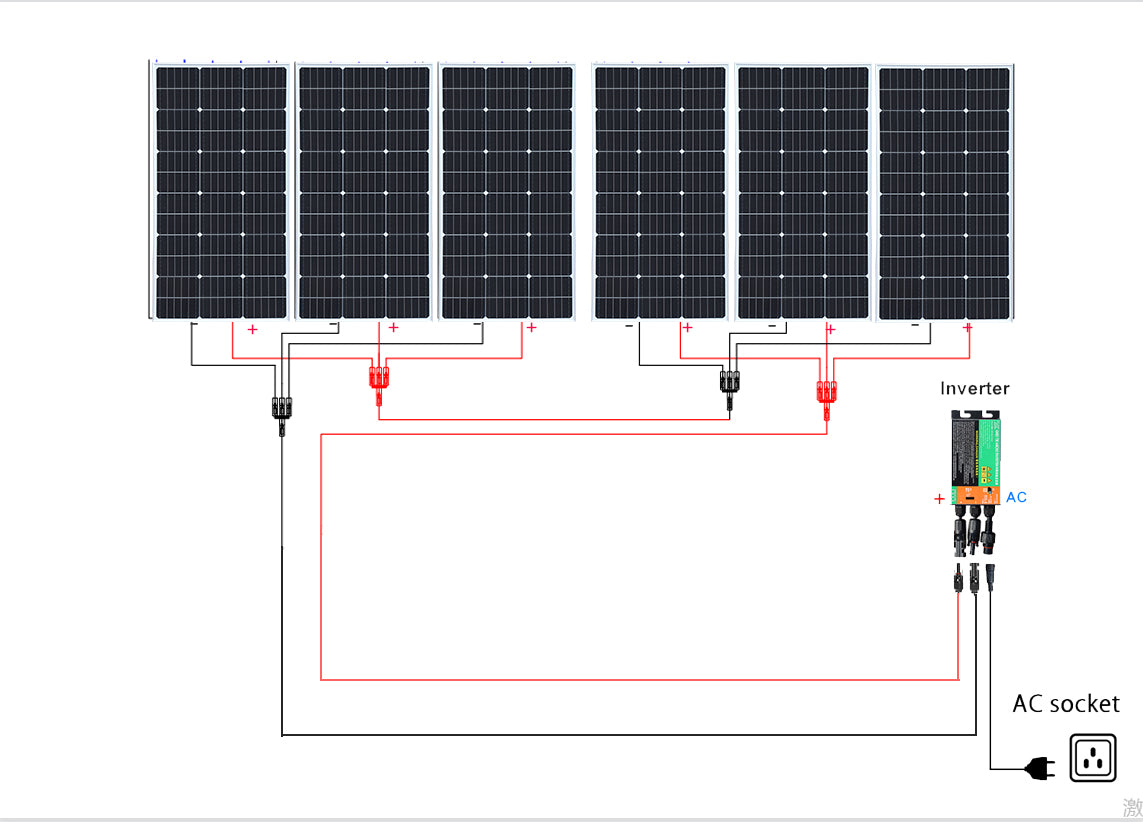

The composition of a balcony power plant is simple. One or two solar panels are connected to an AC inverter, then to a current protection device, and finally to a socket, which is easy to install by individuals.

6pcs 100w solar panels are combined to form a 600w solar system and 600w microsoft grid-connected inverter.

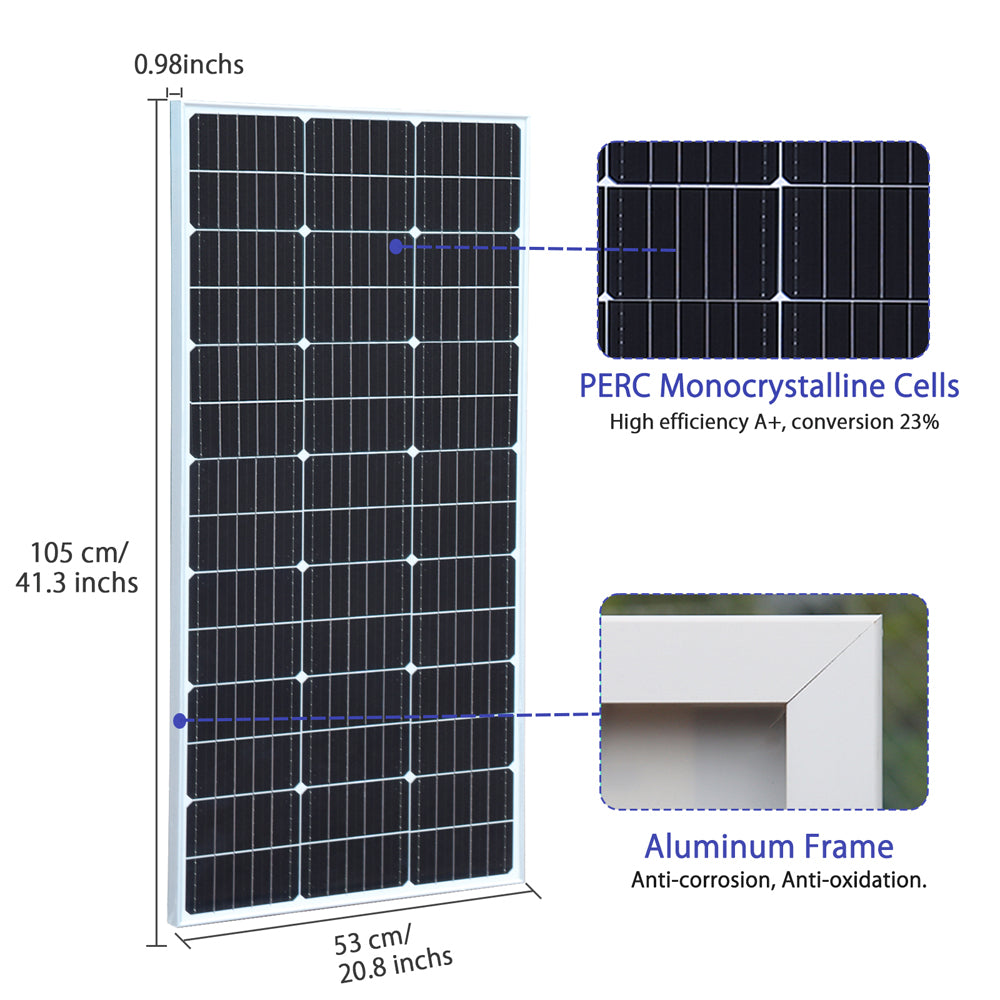

The solar panel is made of Perc high efficiency monocrystalline silicon cells, with high quality products. The inverter is equipped with AC plug. The whole installation is very simple and easy. You can easily have your own grid-connected mini power plant.

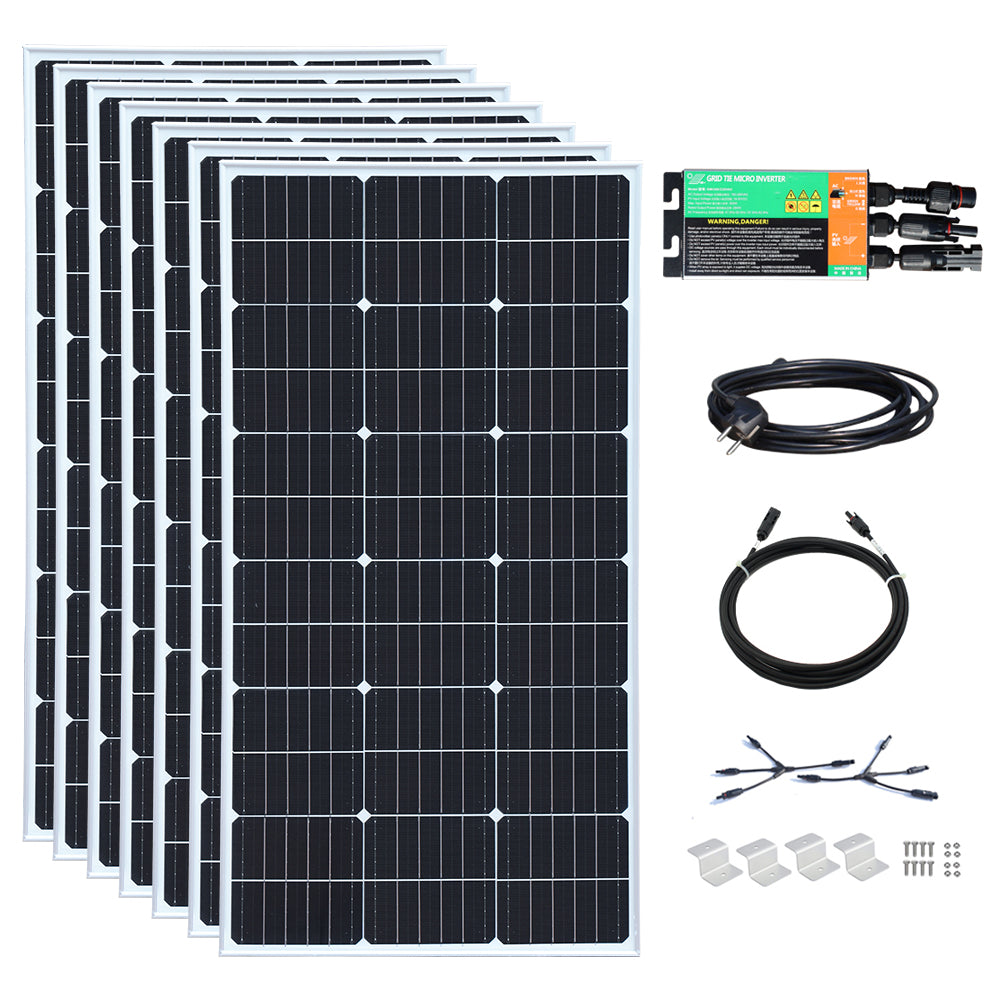

Balcony power kit includes.

6X 100W solar panels

1X600W grid-connected micro-inverter

1X5M AC connection cable

1X 3M MC-4 extension cable

24X Z-type mounting bracket

2X Parallel connectors

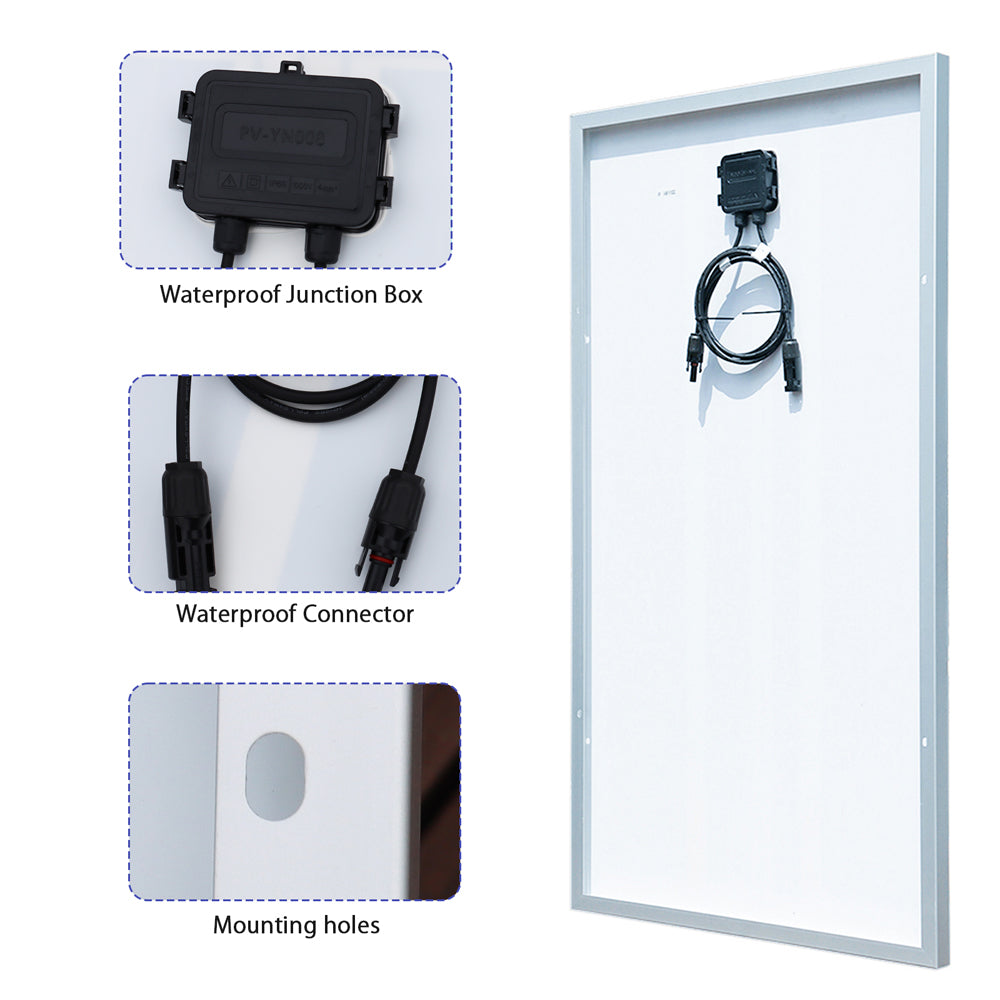

Solar Panel
Maximum power：100W
Maximum power voltage：18V
Maximum power current：5.55A
Open circuit voltage：21.6V
Short circuit current：6.10A
Size of module：37.59x20.86x0.98 in (955X530X250mm)
Temperature Range：-20- +80 ℃
Weight per piece： 11lb(5kg)
Length of Cables： 2.95FT（90cm）
Standard Test Conditions：AM1.5 100mw/cm2 25 ℃

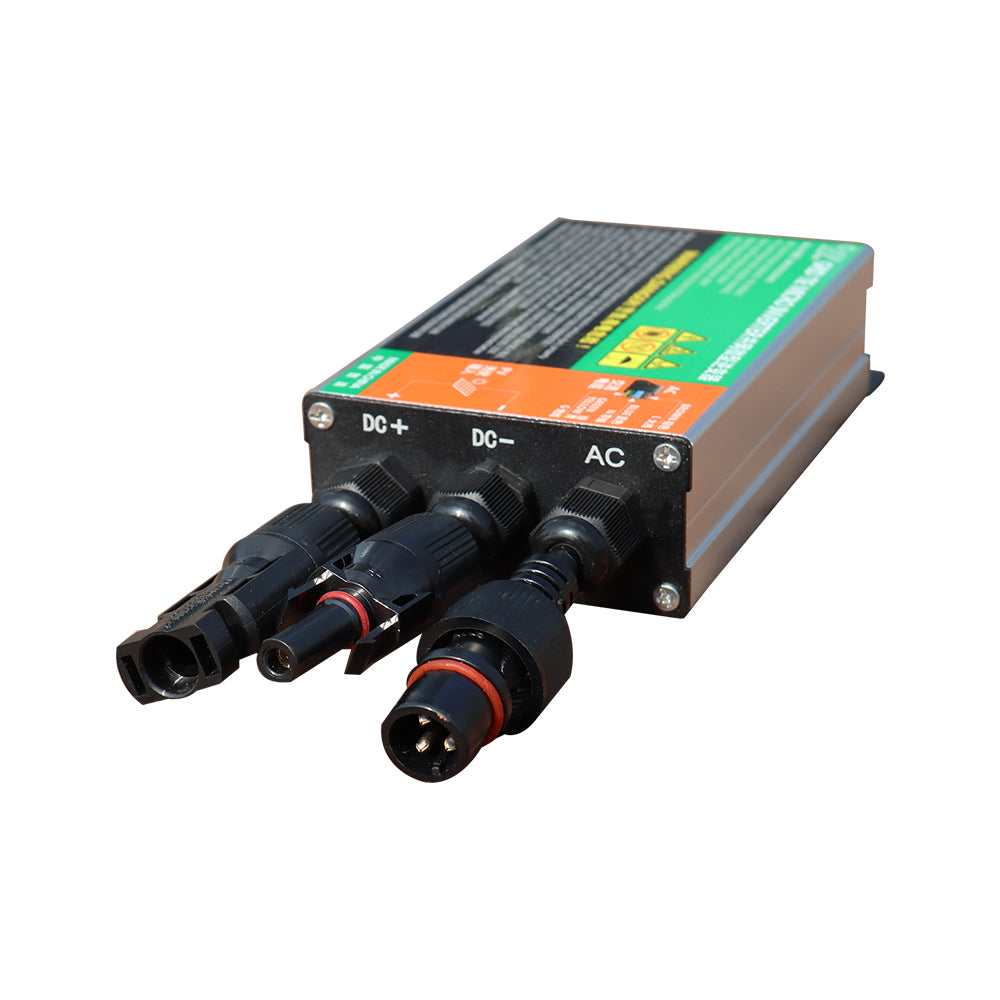

Micro Inverter
Product Series ：GMI500-700 Series
Model ： GMI600
MPPT Voltage Range ：24V-40V
Operation Voltage Range ：18V-50V
Maximum Input Voltage ：50V
Startup Voltage ： 18V-50V
Maximum Input Power ：600W
Maximum Input Current ：24A
Output Data (AC)：120V / 230V
Rated Output Power ：580W
Maximum Output Power ：600W
Nominal Output Current ：120V : 2.33A/230V : 1.21A
Nominal Output Voltage ：120VAC / 230VAC
Default Output Voltage Range ：@120VAC : 80V-160V / @230VAC : 180V-280V
Nominal Output Frequency ： 50Hz / 60Hz
Default Output Frequency Range ： @50Hz : 47.5Hz-52.5Hz / @60Hz : 57.5Hz-62.5Hz
Peak Efficiency ： 92.50%
CEC Weighted Efficiency CEC ：@120VAC : 90.5% / @230VAC : 91.5%
Nominal MPPT Efficiency ：99.90%
Night Power Consumption ：<700mW
Operating Ambient Temperature Range ： -40°C to +65°C
Storage Temperature Range ： -40°C to +85°C
Dimensions (W x H x D) ）：41mm x 106mm x 282mm
Weight： 0.95kg
Waterproof Grade ：IP55
Cooling Mode ：Natural Convection - No Fans
Transformer Design ：High Frequency Transformers, Galvanically Isolated
Integrated Ground ：Equipment ground is provided by the PE in the AC cable. No additional ground is
Protection Functions ：required.Isolated Island, Voltage, Frequency, Temperature, Current etc.
